Pad Mounted Transformers
You are here:

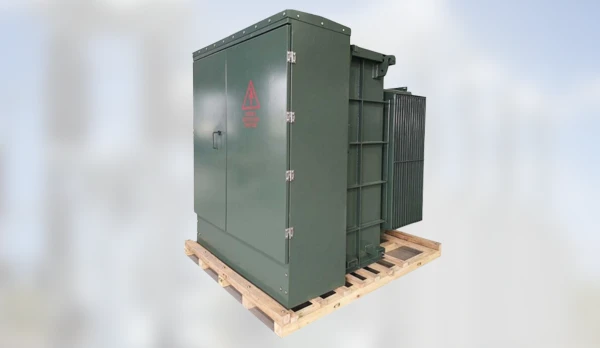

We offer a complete line of Liquid- filled Three Phase Pad-Mounted distribution transformers that meet applicable ANSI/IEEE Standards specifically designed for US & European Market.
With high voltages up to 34.5 kV and ratings up to 5000 Kva (ONAN), Our compartmental-type Three Phase pad-mounted Commercial Transformers are designed for outdoor installation on a concrete pad and provide underground power distribution to commercial, industrial and institutional loads. High grade materials, combined with sophisticated engineering design systems, are key elements of a transformer that will deliver years of highly reliable service.
Features
- 60 Hz operation
- 65°C average winding rise
- Radial & loop feed arrangements
- Dead and live front type of HV terminals
- Plug-in type HV bushing
- HV BIL 45 - 150 kV (Dead Front) 200 kV (Live Front)
- Three-point latching of low-voltage door
- High-voltage door, which can be opened only after the low-voltage door is opened
- LV BIL 30 - 60 kV
- Rigid steel partition
- Transformer tank welded from cover to base
- Permanent nameplage
- One-inch drain value and sampler
- Automatic pressure-relief value
- Tap changer with (2) 2.5% full capacity taps above and below nominal
- Painted olive-green color or as per Customer requirement
- Designed, manufactured and tested in accordance with the latest ANSI/IEEE standards
Range We Offer
| Capacity | From 100 KVA to 5000 KVA |
| Voltage Class | 12.47 kV, 13.2kV, 13.8kV, 34.5kV (Any Special Customised Class as per requirement) |
| Low Voltage Class | 380 V, 400 V, 515 V, 433 V, 440 V, 600 V & 690 V (Any Special Customised Class as per requirement) |
| Cooling | ONAN |
